Modular
Wall Light

Technical
[Product Design] [Rapid Prototyping] [Laser Cutting] A-Level Component 2 · 2025
Soft Skills
Creativity Iterative Development Research & Justification

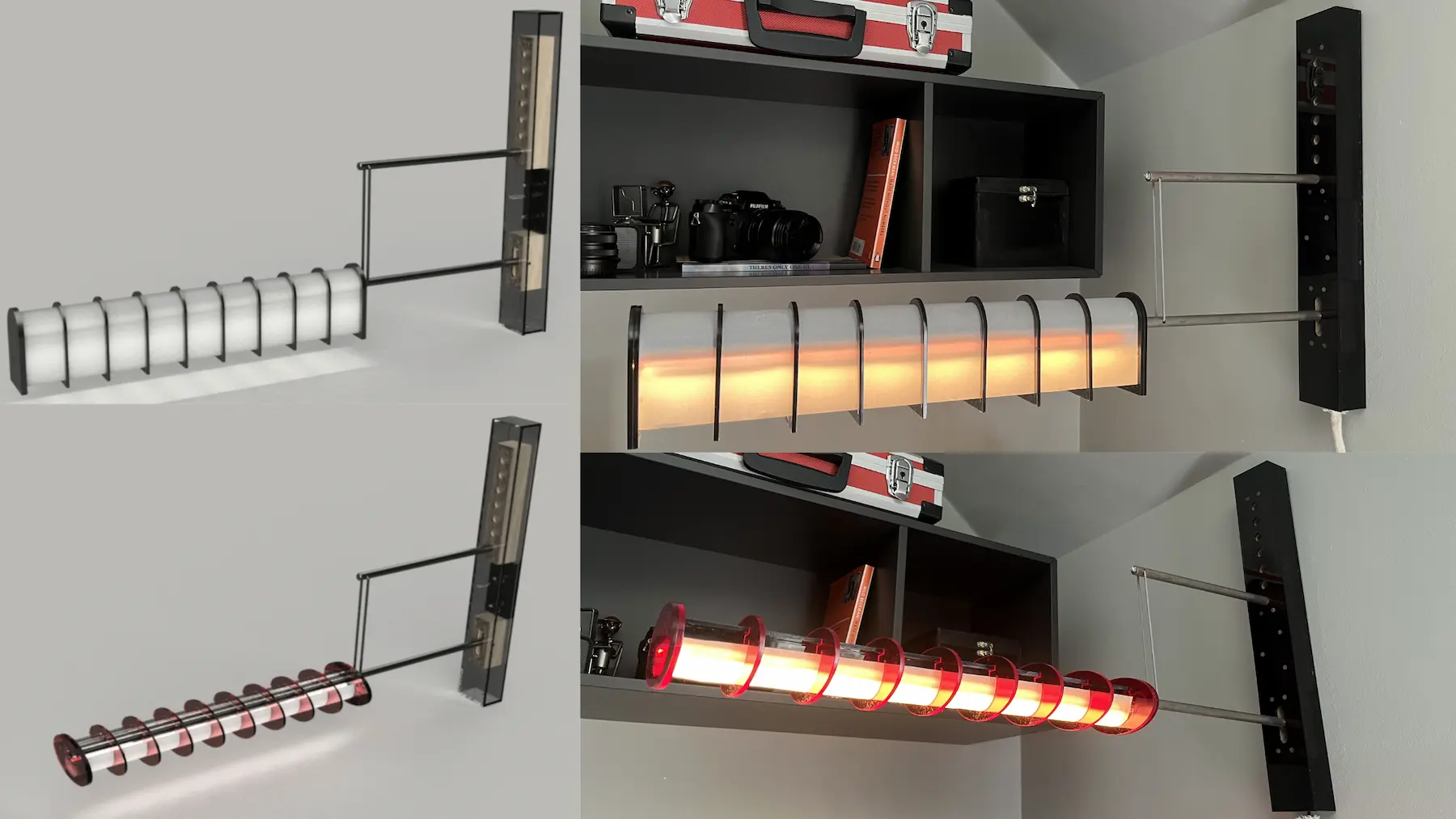

Modular wall light — final product photograph

This wall-mounted light was designed around the theme of tension, made as part of my A-Level 3D Design coursework. The design features two interchangeable shades, an adjustable arm to change the angle of the light, and an integrated COB LED strip. The two shades let the user switch between diffused ambient lighting and more directional task lighting. COB strips were chosen over SMD strips for their better diffusion quality.

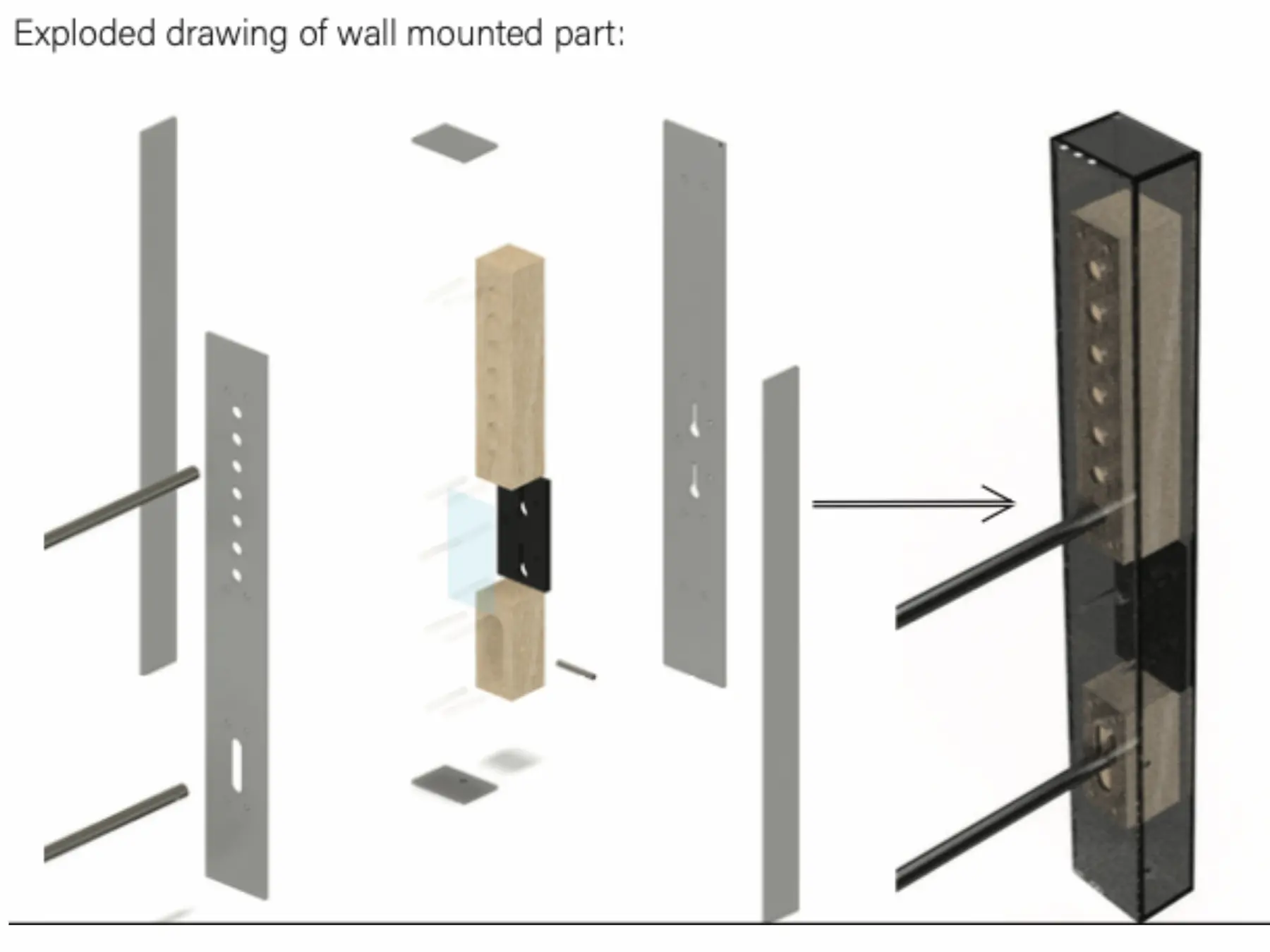

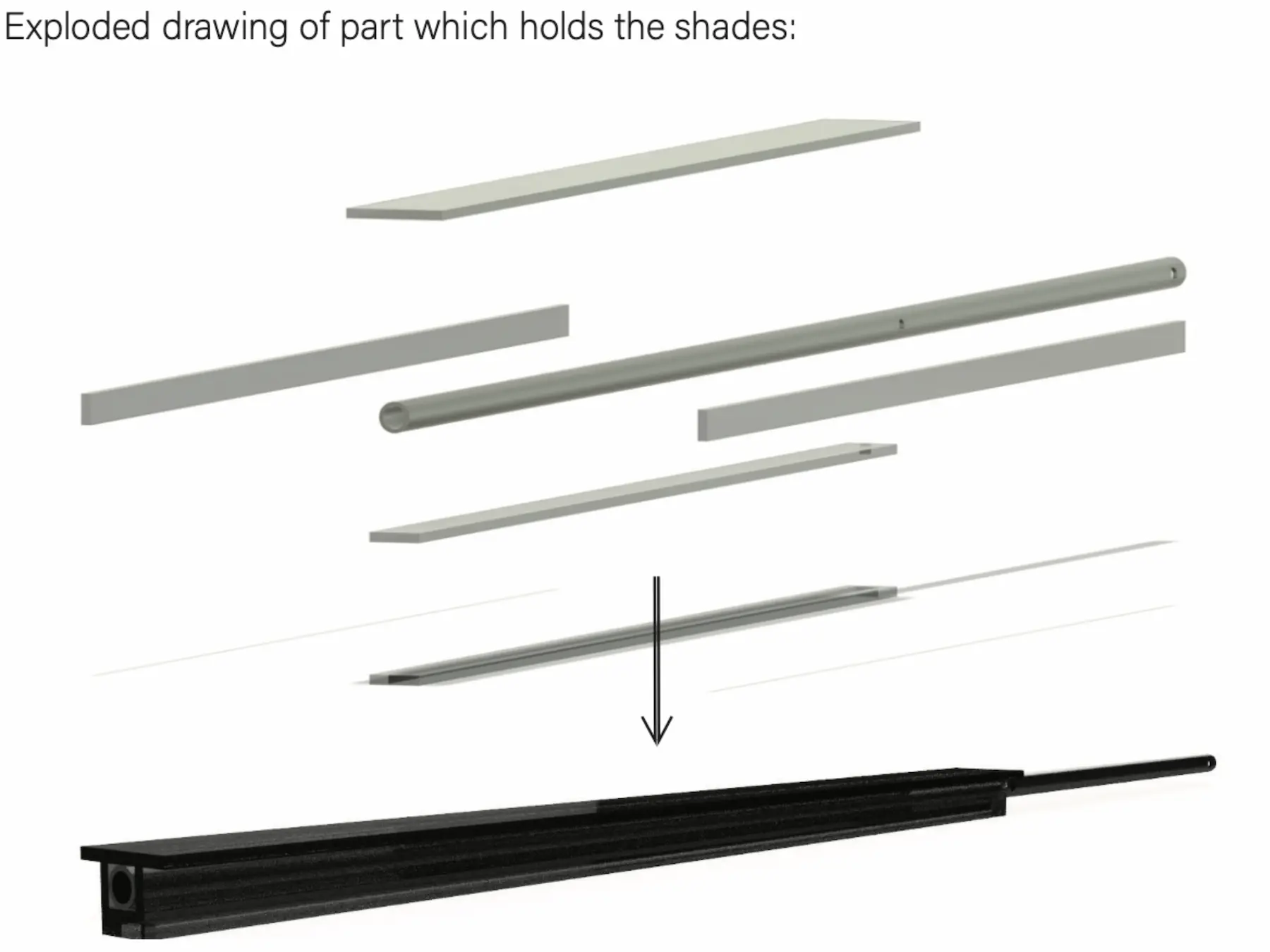

Development involved extensive model-making, with 3D printing and laser cutting as the main methods of rapid prototyping. The final product combines wood, acrylic, and metal.

Year2025 — A-Level Component 2
Key Skills3D modelling, laser cutting, prototyping
Materials & ProcessWood, acrylic and metal; developed through 3D-printed and laser-cut prototyping

Key Takeaways
